Product Overview

Features

DVStation-Remote, consisting of a 1RU remote controller unit and up to four interface pods, is the ideal choice for a few signals in many places.

Built from the same technology as the 21-port DVStation, the system provide physical, transport, and content monitoring in a consolidated system optimized for remote site deployment. Its compact size, low entry level cost, and flexible user interfaces make it the ideal choice for monitoring a number of remote installations. Designed for unattended locations, the system can be completely operated by remote control, by local user access or by several users simultaneously.

  • Status at a glance - global view of network health
  • Error detecting on multi-layers (physical layer, transport layer and video quality) on 4 ports simultaneously
  • Real-time indication of service integrity and signal integrity
  • Full physical layer testing (interfaces for ASI, SPI, RF, ATM)
  • Unprecedented 180Mbps MPEG transport stream analysis.
  • Automatic measurement of PID bandwidth/utilization, PCR jitter/interval and SI table compliance
  • Real-time decoding of PSI, DVB, ISDB, and ATSC tables
  • Multiple user control options including X-window, web browser, CORBA and GPI
  • SDI interface provides real-time picture quality measurement
  • SDI Audio Monitor pod displays audio level and phase up to four channels

Flexible User Interface

DVStation-Remote communicates with remote users or applications over standard IP based links. Connection can be made using the built-in 100BaseT ethernet port or via an external dial up modem. Additionally, GPI contacts provide further flexibility in integrating with existing systems.

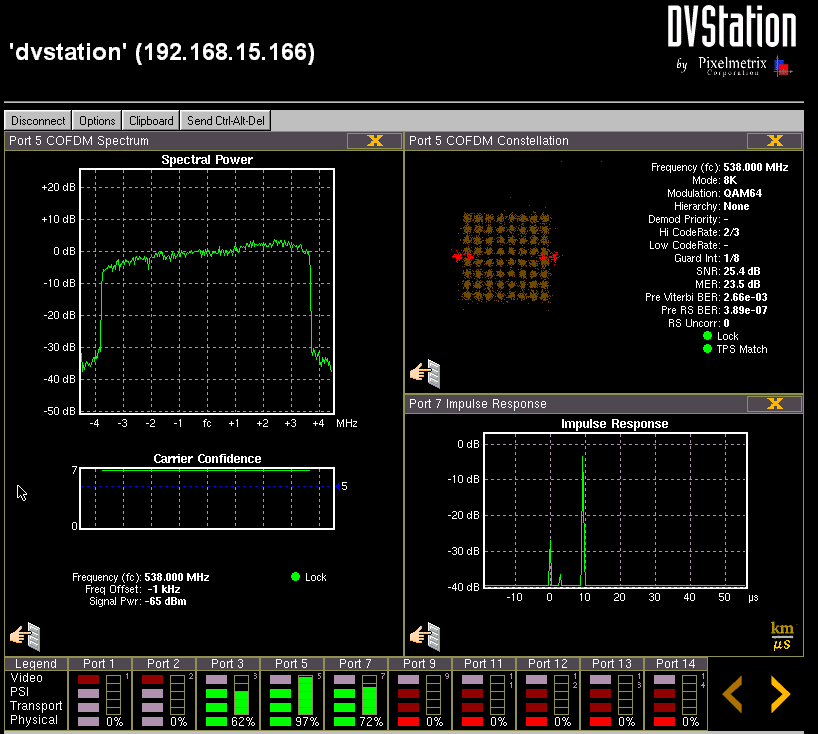

click to enlarge


DVSTATION-REMOTE
DVStation-Remote
Scalable from one to four ports, DVStation-Remote provides cost effective monitoring of RF, ATM and MPEG signals.
