Product Overview

Features

  • Real-time comprehensive transport stream monitoring
  • Freeze-frame and blackout checks for unencrypted video services

  • Service thumbnail view for remote confidence monitoring
  • Round-robin checks using configuration profiles
  • Video backhauling for quality verification

  • Transport stream capture

    •
  • Up to three ASI input ports

  • On-air service validation

  • HTML, SNMP, CORBA,
    X-Windows and VNC Interfaces

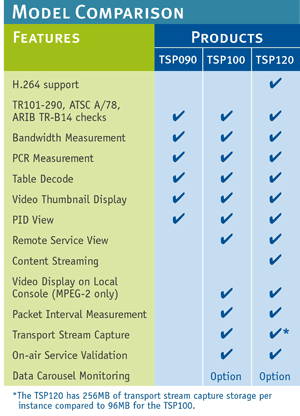

Comparison
s
Multi-port, multi-layer, monitoring solution for digital video networking.


  button
button
button

Functionality

  • Measurements
    • TR101290 Priority 1, 2, 3
    • Bandwidth measurement
    • PCR jitter
    • Packet Interval

  • Analysis
    • Table Decode
    • PID View
    • Service view thumbnails (MPEG-2)/H.264 (4:2:0/4:2:2)
    • Remote Service View (video backhaul using the WAN connector on a DVStation-210/211 or DVStation-Remote)
    • Content Streaming (video backhaul using the Forward port on the TSP120/REM-TSP120)

  • Tests
    • Video Blackout/Freeze-frame (MPEG-2/H.264)
    • Audio Tone Silence (MPEG-1/MPEG-2)
    • On-air content validation (OCV)
