Introducing DVProbe-S2

The Pixelmetrix DVProbe-S2 monitoring probe is a compact and affordable multi-standard solution for the monitoring of digital satellite transmission. It supports DVB-S2, DVB-DSNG and DVB-S modulations.

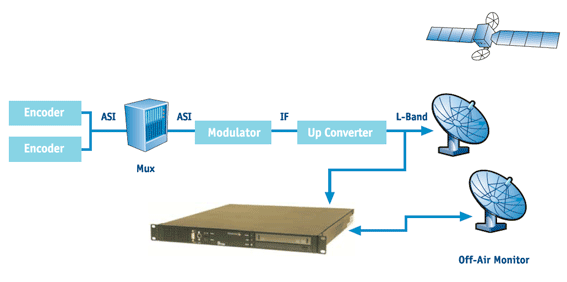

The device connects directly to the DVB-S2 RF network at either the uplink or downlink point for monitoring both RF and Transport Stream parameters. Packaged as a 1RU rack-mount system with power, network and RF input connections all on the back of the unit, it integrates easily even into space conscious environments.

The system performs multi-standard signal demodulation and a comprehensive suite of continuous RF, modulation, transport stream and content validation tests.



Key Features

  • DVB-S2 (EN 302 307) QPSK/8PSK/16APSK/32APSK
  • DVB-DSNG (EN 301 210) QPSK/8PSK/16QAM options
  • DVB-S (EN 300 421) QPSK
  • DVB-S2 CCM and VCM mode capable
  • Both pilot and no pilot mode support
  • DVB-S2 short and normal frames capable
  • Modulation fidelity analysis via SNR and MER
  • Pre-RS/BCH BER and post-RS/BCH BER monitoring
  • Constellation visualization
  • Long-term logging of all measurements
  • Multiple configuration profiles and round-robin scheduler for monitoring multiple transponders
  • Multi-user remote access over LAN, internet or modem connection




DVProbe

DVProbe

A compact and affordable multi-standard solution for the monitoring of digital satellite transmission.






Topo
