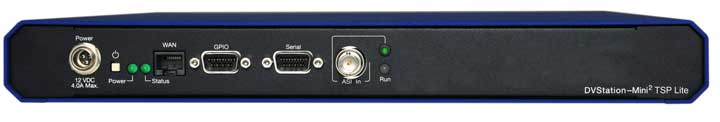

Introducing the DVStation-Mini2 TSP Lite

The DVStation-Mini2 TSP Lite is a single port ASI/SMPTE-310 transport stream monitoring solution. Rugged, portable and cost effective, it is ideal for rough and mobile environments.

The DVStation-Mini2 TSP Lite supports H.264 SD and HD services and lets you remotely view full frame video with associated audio. The DVStation-Mini2 TSP Lite can also capture a segment of the live transmission for later analysis.

The DVStation-Mini2 TSP Lite has internal shock mounts to ensure that it is working at its best when you need it most. It helps to verify service line-up at each regional site against a reference template. In case of missing or unreferenced services, incorrect Network ID / Service ID, etc.

It includes an automatic configuration set and update with optional EIS-MuxConfig protocol support.
s
TSP_Lite_pdt
A single port version of the DVStation for visibility of network quality and performance.



  DVStation-Mini TSP Specs
DVStation-Mini PSK Specs
DVStation-Mini2 DVB-T Specs
DVStation-Mini2 QAM
DVStation-Mini2 TSP Lite
DVStation-Mini2 VSB

features
specs
datasheet




TSP Lite pdt pic

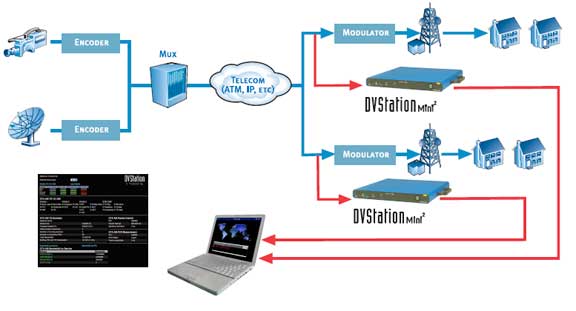

topo
Comparison Chart
Features
DVStation-Mini2 TSP Lite
DVStation-Mini TSP
DVStation Remote II + TSP120
Inputs
1*ASI
1*ASI
Up to 3*ASI per TSP120
(up to 4* TSP120 per DVStation-Remote)
Rack space needed
1 RU

1 RU
2 RU (min) / 3 RU (max)
Interfaces
SNMP, VNC & HTML

SNMP, VNC & HTML
SNMP, VNC, HTML &
Local Console
Video codecs supported
H.264 / MPEG-2

MPEG-2
H.264 / MPEG-2
(High Profile 4:2:2 support included.)
Maximum transport stream input bitrate handled
60 Mbps

180 Mbps
215 Mbps
maximum
Expandability
No

No
Yes
(up to 4* TSP 120 per DVStation-Remote)
