Specifications

Form Factor

  • 1 RU 19 inch rack-mountable
  • +10 to +30 degrees Celsius, Operating


Input (RF)
  • Connector: 2 x BNC (IF & RF)
  • Impedance: 75Ω
  • Return Loss: 10 dB Typical
  • RF Power Level: -25 dBm to -80 dBm*
  • Tuner Center Frequency Range: 57 MHz to 855 MHz
  • IF Centre Frequency: 44 MHz


Input (SMPTE-310 / ASI)
  • Connector: BNC
  • Impedance: 75Ω
  • Max input bitrate: 32 Mbps


Output
  • Connector: BNC
  • Impedance: 75Ω
  • Return Loss: >19 dB
  • Complies with EN50083-9

Standards
  • ATSC Digital Television Standard, 8VSB and 16VSB




Reported Demodulation Parameters
  • FEC Frame Lock


Measurements
  • RF Carrier Level
  • Symbol Rate and Pilot Frequency Offset
  • EVM (Error Vector Magnitude)
  • RS uncorrected Packet
  • Line BER
  • MER (Modulation Error Ratio)


Graphical Presentations

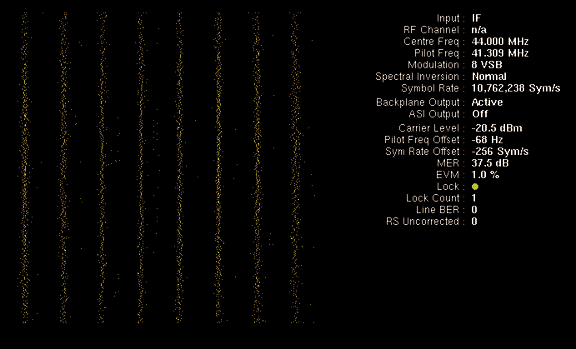

  • Constellation

Alarms
  • FEC Frame Lock Acquired/Lost
  • Symbol Rate and Pilot Frequency Offset Exceed User-Specified Threshold
  • BER Exceeds User-Specified Threshold
  • RF Carrier Level Falls Below User-Specified Threshold
  • EVM (Error Vector Magnitude) or MER Exceeds Specified Threshold
  • RS Uncorrected Packets Exceed Specified Threshold
s
TSP_Lite_pdt
A single port version of the DVStation for visibility of network quality and performance.



  DVStation-Mini TSP Specs
DVStation-Mini PSK Specs
DVStation-Mini2 DVB-T Specs
DVStation-Mini2 QAM
DVStation-Mini2 TSP Lite
DVStation-Mini2 VSB

features
specs
datasheet





*For QEF at 600 Mhz
